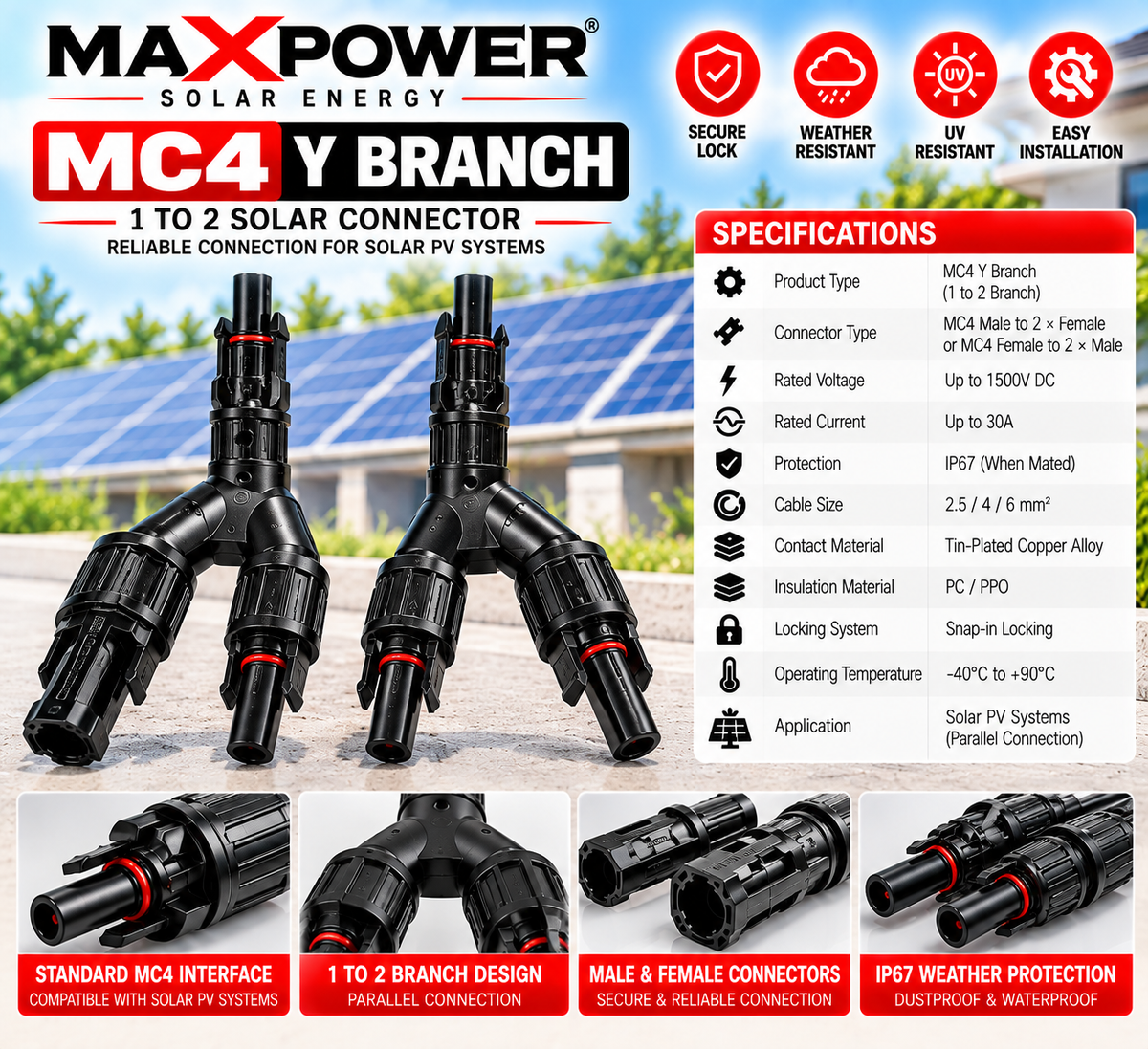

MaxPower MC4 Y Branch – 1 to 2 Solar PV Connector

MaxPower MC4 Y Branch Connector solar panels ko parallel connection mein connect karne ke liye use hota hai. Yeh male/female MC4 configuration, secure snap-in locking aur weather-resistant design ke saath solar PV systems mein reliable connection provide karta hai.

Specifications

• Product Type: MC4 Y Branch (1 to 2)
• Connector: MC4 Male → 2× Female / Female → 2× Male
• Rated Voltage: Up to 1500V DC*
• Rated Current: Up to 30A*
• Protection: IP67 when mated
• Cable Size: 2.5 / 4 / 6 mm²
• Contact Material: Tin-Plated Copper Alloy
• Insulation: PC / PPO
• Locking: Snap-in Locking
• Operating Temperature: -40°C to +90°C*
• Application: Solar PV Parallel Connection
