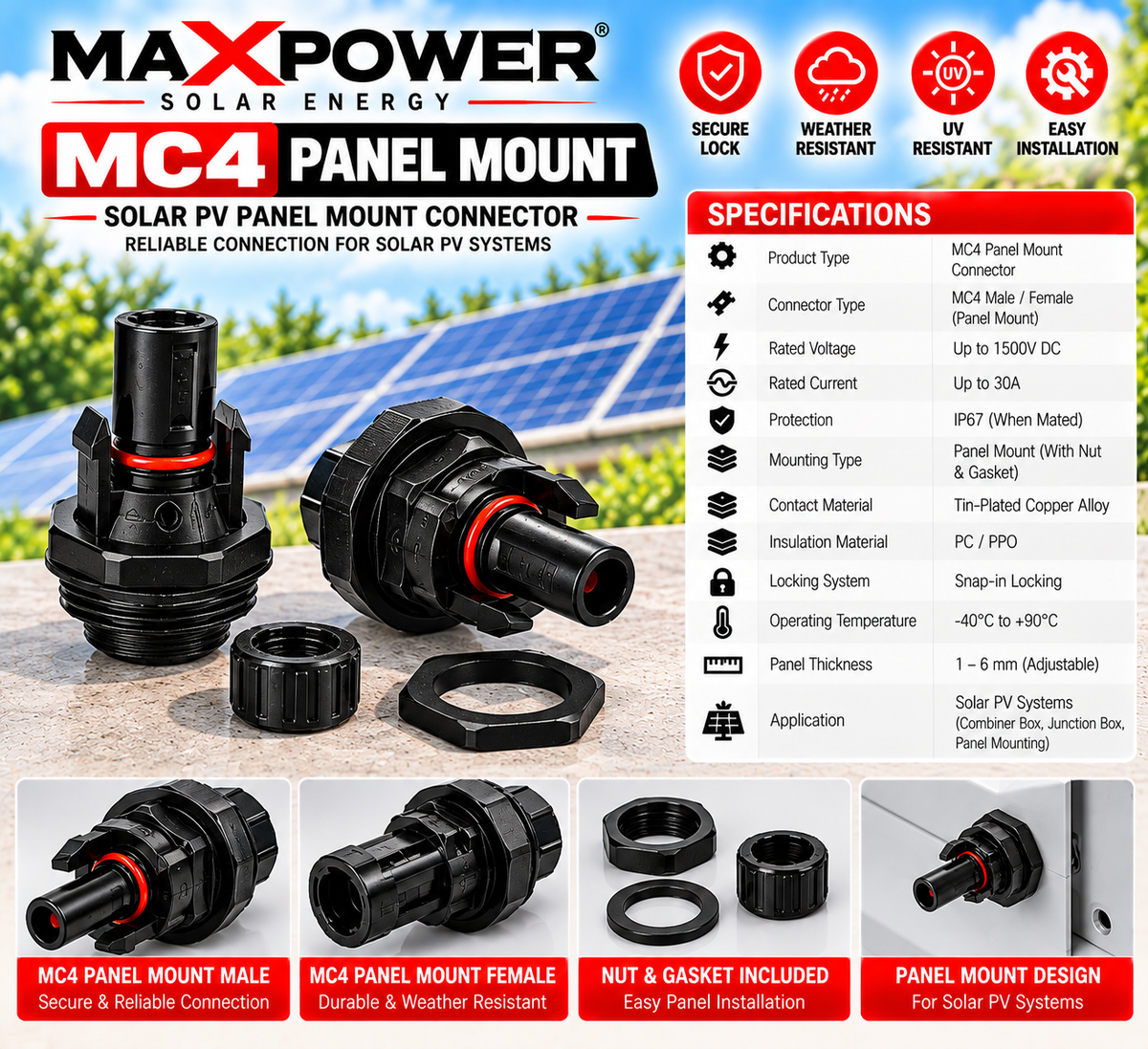

MaxPower MC4 Panel Mount Connector – Male & Female

MaxPower MC4 Panel Mount Connector solar panels, combiner boxes aur junction boxes mein secure PV cable connections ke liye suitable hai. Panel-mount design ke saath nut aur gasket included hain, jo installation ko easy banate hain aur outdoor solar applications mein reliable connection provide karte hain.

Specifications

• Product Type: MC4 Panel Mount Connector
• Connector Type: MC4 Male / Female
• Rated Voltage: Up to 1500V DC*
• Rated Current: Up to 30A*
• Protection: IP67 when mated
• Mounting: Panel Mount with Nut & Gasket
• Contact Material: Tin-Plated Copper Alloy
• Insulation: PC / PPO
• Locking: Snap-in Locking
• Panel Thickness: 1–6 mm*
• Operating Temperature: -40°C to +90°C*
• Application: Solar PV Systems, Combiner Box, Junction Box & Panel Mounting
